SCHLEPPFIX SVA 7 / SVA 9
FOR USE WITH HOSES
Machine description
SVA 7 / SVA 9
SVA 7
SVA 9
7.5
9.0
Working width in meters
Number of outlets
24 / 48 ¹
30 / 60 ¹
slope
≤ 40%
≤ 40%
app. 690 kg
app. 790 kg
Wt. without att.
Nos. of hydraulic valvers
1x DW ³
1x DW ³
⌀ Nozzle cross-section
47-87 mm
47-87 mm
Attachment option
Tractor
Tractor
¹with Duofix triangle ² EW = single-acting ³DW = double-acting

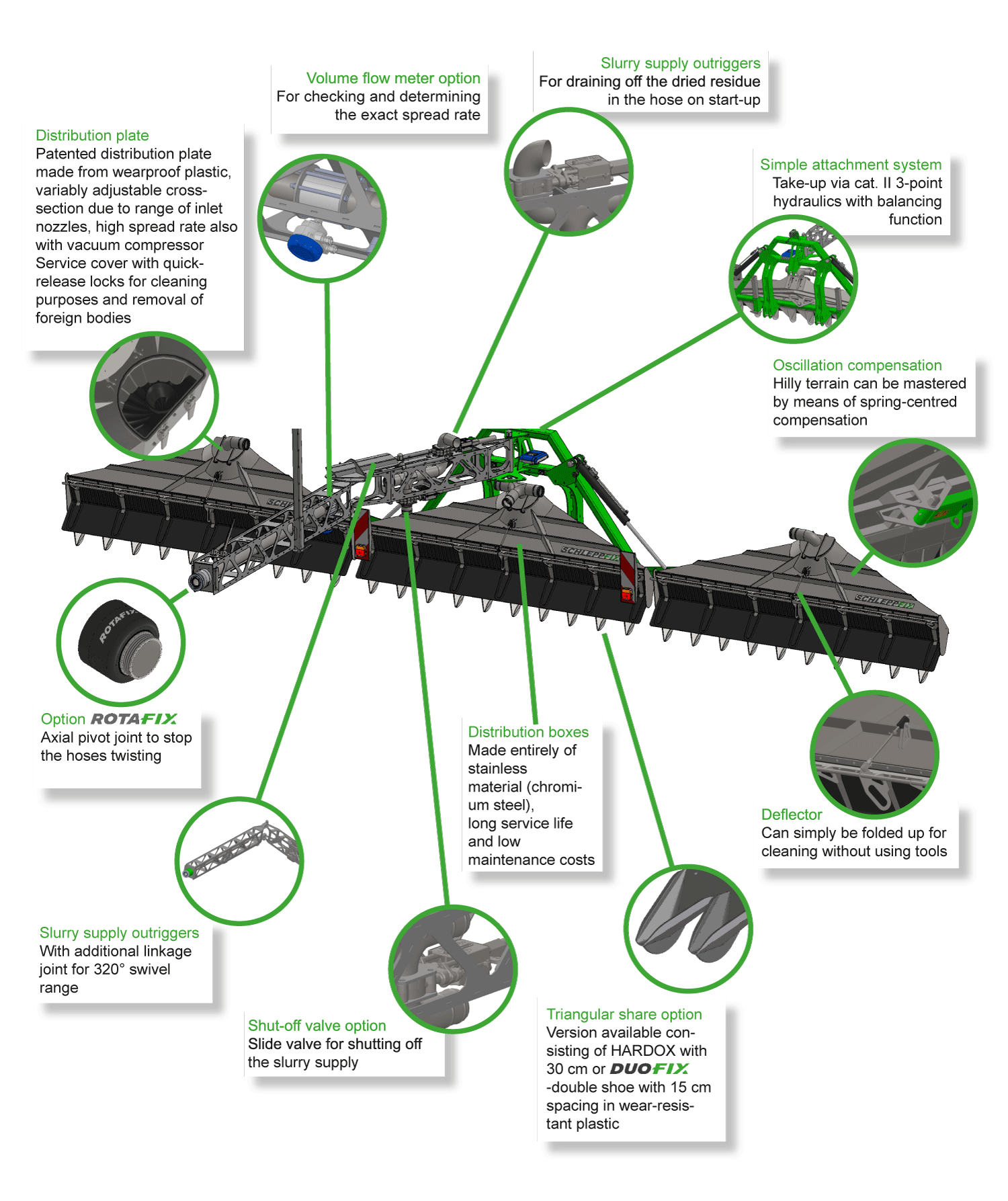

Characteristics
SVA 7 / SVA 9
-
Clean and narrow storage in the plant inventory thanks to the shoe system
-
Dead weight of the distributor when spreading liquid manure on the ground (low front axle relief)
-
Very simple, solid hydraulic system
-
Low hydraulic requirements for the towing vehicle
-
Output quantity can be individually adjusted to pump performance (no twisting of the hoses)
-
Optimal weight distribution in transport position
-
Boom with additional joint, swivels 320° for low drag when cornering
Downloads
SVA 7 / SVA 9
-
Broschure Schleppfix SVA (EN)
Technische Details
SVA 7 / SVA 9
